SINK PLUMBING ASSEMBLIES
click here to view Table A
click here to view Table B
Have California Stainless install the highest quality chrome plated fixtures on your stainless or fiberglass sink. Choose the fixture and location to meet your specific requirements.
Backsplash height increased to 12" and width to 5" on Coved, Standard, or Temperature Sinks with order of Plumbing Assembly (Models PA1, PA2, PA3, or PA4). This provides faucet clearance, higher wall protection, and conceals plumbing connections, allowing sink to be against wall.
Wide Backsplash Returns, 5" deck, are ordered separately if individual deck faucets are ordered without Plumbing Assembly. (Models PA1, PA2, PA3, or PA4.)

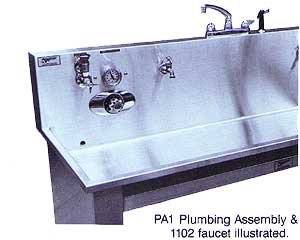

Plumbing Assembly 1
One concealed water temperature thermostatic control valve, one set checkstops, one 3½" dial thermometer, one Model WVB14 (shown) volume control valve with vacuum breaker for sink inlet swivel, one Model F62P faucet plumbed to temperature control valve, one Standpipe, one increased backsplash to 12" high and width to 5".
Plumbing Assembly 2
Same as PA1 (above) plus one additional F62P (shown) faucet plumbed to temperature control, installed at opposite end.
Plumbing Assembly 3
Same as PA2 (above) plus one 1201 (shown) Triple valve faucet plumbed to temperature control in center of sink.
Plumbing Assembly 4
Same as PA2 Assembly, plus one 1200A (shown) Triple valve faucet with spray plumbed to temperature controls in center of sink.

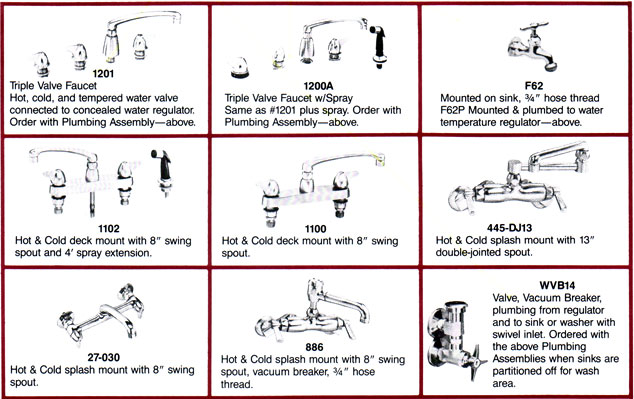

Sebastian Fixtures For Sinks & Washers
Other options are available on the Sebastian Darkroom Products website. Please click here to be directed to SEBASTIAN PLUMBING FIXTURES & WATER CONTROLS
Click below to view more SINK PLUMBING ASSEMBLIES & ACCESSORIES
click here for more PLUMBING FIXTURES & WATER CONTROLS
